Toggle Switch

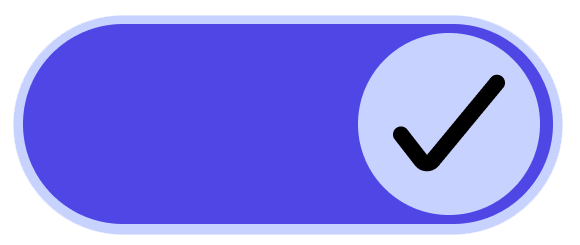

The Toggle Switch widget provides a minimal display for boolean states such as on/off, open/closed, or active/inactive. Supply the value from device capabilities, Homey variables, or DataVista action cards.
Add the widget to your dashboard
- Open the Homey app and go to Dashboards.
- Enter Edit Mode and select Add Widget.
- Choose Apps and select DataVista.
- Pick the Toggle switch widget.
- Click the preview to add it to your dashboard.
Configure the widget
| Setting | Description |
|---|---|
| Datasource | Select a DataVista boolean value*, device capability, or Homey variable. |
| Refresh interval | Polling frequency when using device capabilities or variables. |
| Overwrite name | Replace the datasource name with custom text. |
| Color if true | Color when the value is true. |
| Color if false | Color when the value is false. |
| FA icon code if true | Font Awesome 6 (free, solid) Unicode for the true state icon. |
| FA icon code if false | Font Awesome 6 (free, solid) Unicode for the false state icon. |
| Show icon | Display the capability or device icon (capability takes priority). |
warning
To use a DataVista boolean value, run the DataVista action card that sets the value at least once so it appears in the widget settings.
DataVista
[Boolean] Set value for identifier
i
Set a boolean that can be used in DataVista widgets.
FAQ

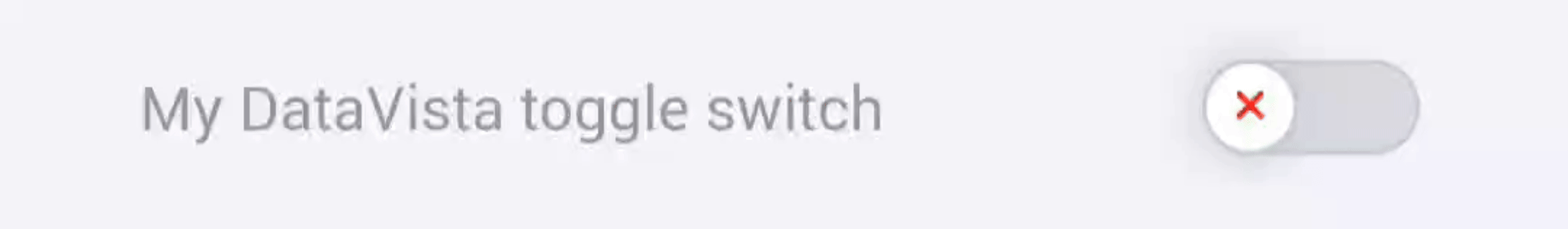

Why does the switch animate between on and off?
The datasource is missing or unavailable. Reconfigure the datasource setting and select a valid source.
Why is my toggle icon a square box?
Ensure you entered a valid Unicode value for a free Font Awesome v6 solid icon.
